ATF 90 G-4
Tadano Faun ATF 90G-4
Safety, quality and efficiency. Ideal for both on and off-road construction and industrial projects, regardless of the location, temperature or climate. Safety devices.
The crane is suited for jobs where normally bigger cranes are used. Telescopic boom with 6 sections made of high tensile, fine-grained steel, consisting of 1 base section and 5 telescoping sections extended by means of a single telescopic cylinder. All telescope sections extendable under partial load. Steering system ZF-Servocom, dual circuit hydraulic steering with emergency steering pump. Safety devices include electronic load moment device and automatic overload shut-off, hoist limit switch with shut-off, overload warning and load moment gauge. Digital displays show boom angle, boom length, sheave height, working radius and hook load.
Model
Tadano Faun ATF 90G-4. www.tadanofaun.en
Model: Tadano Faun ATF 90G-4

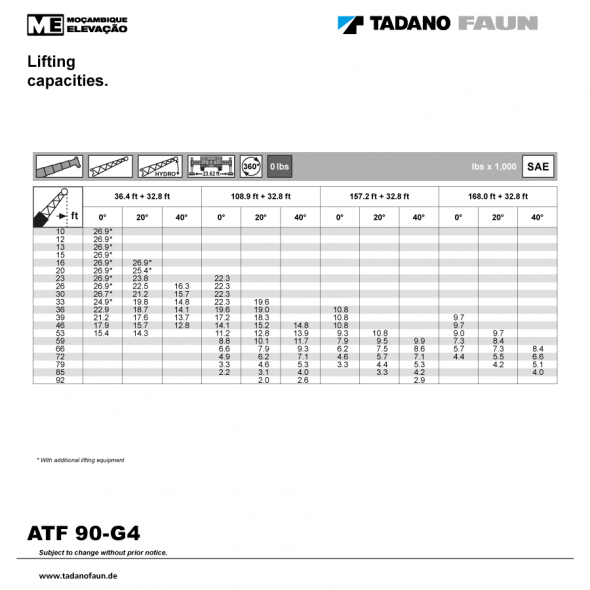

| Max. Lifting capacity | Max. Sheave height | Max. radius | |
|---|---|---|---|
| 1 | 110 t | 73 m | 56 m |
Max Traveling Speed 85 km-h. / Dimensions Length: 13.05 m. Width: 2.75 m. Height: 3.92 m. / Boom Length 11.1 m – 51.2 m long. / Boom Extension 10.0 – 18.0. / Tyres (8) 445/95 R 25 (16.00 R 25), width 2.75 m. / Gearing mechanism: ZF-AS-Tronic.
Model: Tadano Faun ATF 90G-4
Outriggers
4 point, double telescopic hydraulic outriggers with controls on both sides of carrier and in superstructure cab. Outrigger base 23′ 7-7/16″ (7.2 m) {16′ 4-7/8″ (5.0 m) mid extension} x 28′-1/4″ (8.54 m).
Carrier cab
Two-man, full width cab of composite (steel sheet metal and fibre-glass) structure, with safety glass, air-cushioned adjustable seats (driver seat with heater) and engine based water heater, complete controls and instrumentation for road travel. Cruise control with hill braking feature functions.
Superstructure cab
Spacious panoramic cab of composite structure with safety (tinted) glass windows, tiltable cockpit with hydraulically cushioned adjustable seat with heater, engine independent heater with engine pre-heat, air conditioning, complete controls and instrumentation for crane operation, on-site travelling and outriggers.
Safety devices
Load moment device (LMD), working area limiter, hoist limit switch, lower limit switch and drum turn indicator, safety valves against pipe and hose rupture, holding valves on hydraulic cylinders.
