This off-road crane has a telescopic boom with 4 sections, all telescope sections extendable under partial load.
The telescopic boom with 4 sections is made of high tensile, fine grained steel, consisting of 1 base section and 3 telescoping sections. All telescope sections extendable under partial load. 8.6 m to 28.5 m long. Hydraulic system: Three circuit diesel hydraulic system with 1 double axial piston variable displacement pump (hydraulically adjustable) and 1 triple gear pump.
Dimensions: Length: 9.95 m. Width: 2.55 m. Height: 3,31m. / Drive 4 x 4. / Suspension Hydro-pneumatic. / Counterweight Standard 2,6 t. / Electrical system 24 volt DC system.
Model: Tadano Faun ATF 30-2L
Controls Hydraulic
2 joy-stick levers for simultaneous operation of crane motions.
Derricking system 1 double acting hydraulic cylinder with integral brake and holding valve.
Main winch
Axial piston motor, winch drum with integrated planetary reduction and with hydraulically controlled springloaded,multiple disc brake and with integrated free rotation (no sagging of load when hoisting). Hoist cable with ‘Super-Stop’ easy reeving system.
Slewing system

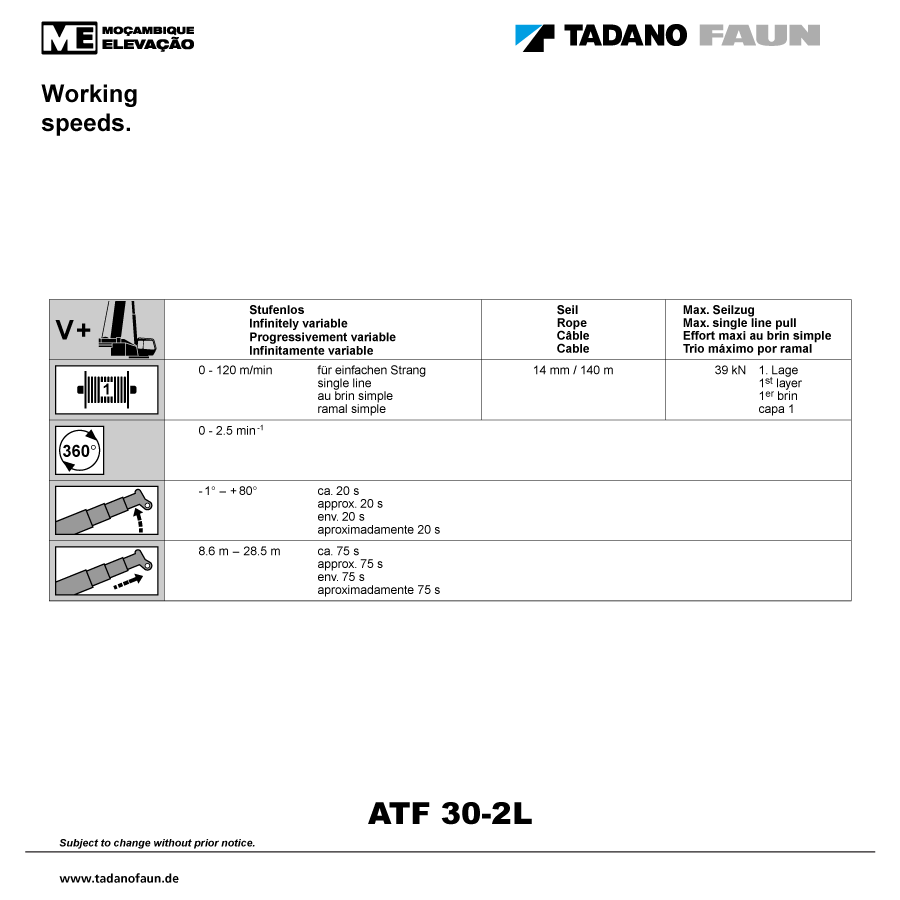

Axial piston motor with two-stage planetary reduction with a foot actuated service and a parking brake. Speed infinitely variable 0 – 2.5 min-1.
