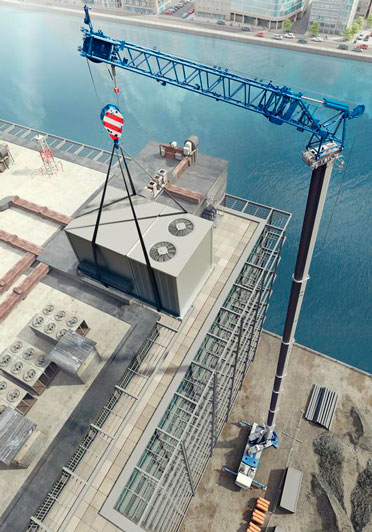

O AC 6.300-1 oferece aplicações exclusivas, permitindo sua adaptação a uma variedade de usos. O menor modelo disponível com lança elevatória, seu design compacto e impressionante manobrabilidade permitem içamentos seguros, flexíveis e produtivos nos canteiros de obras mais apertados. A lança principal de 80 m, combinada com o robusto guindaste, torna o AC 6.300-1 a opção ideal para trabalhos eficientes em altura ou em alcance. Processos de içamento eficientes garantem uma configuração rápida e segura. Além disso, o HAV e muitos componentes do AC 6.300-1 são compartilhados com guindastes Tadano de 5 eixos, reduzindo a necessidade de peças de reposição.
Max. Tip Height: 123 m / Max. Counterweight: 93.8 t / Outrigger Bases:

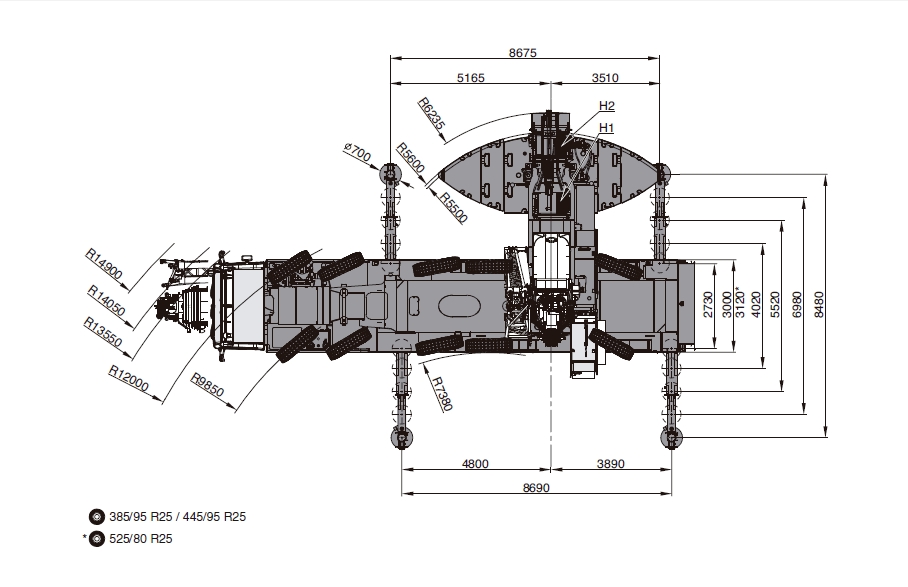

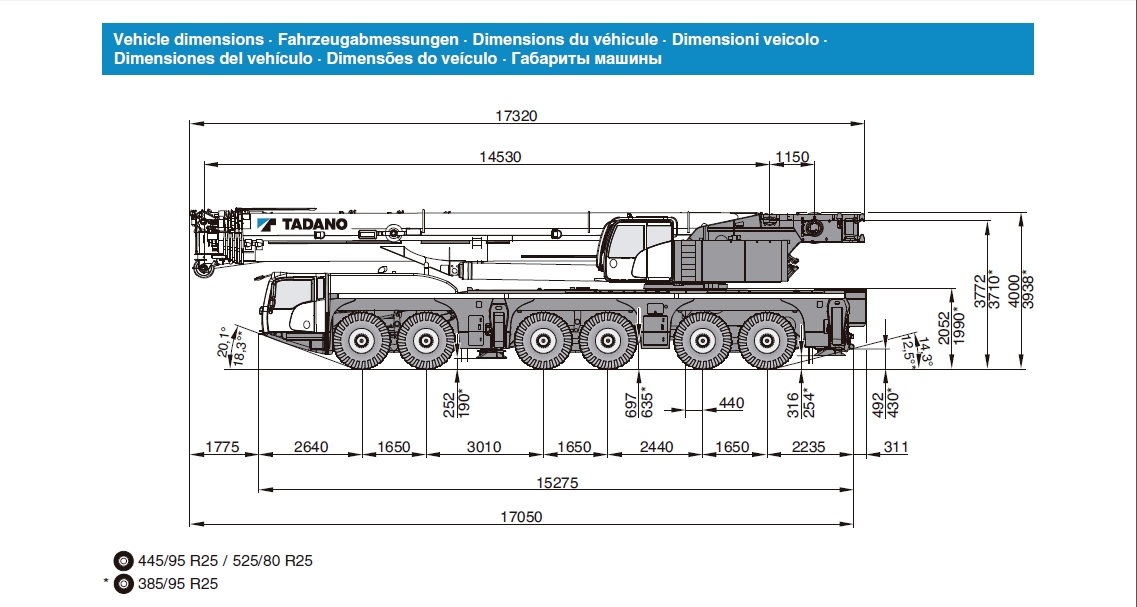

8.69 m x 8.48 m / Hoist Line Pull: 11.8 t / Max. Radius: 86 m / Dimensions: L: 17.32 m W: 3.00 m H: 3.94 m / Axles: 6 / Engine: Mercedes-Benz / Drive: 12 x 6 x 10 (12 x 8 x 12)
Equipment Carrier
Mercedes-Benz OM473; Diesel engine; Output 460 kW / 1600 1/min (617 HP), torque 3000 Nm /1300 1/min;
The engine complies with EU Stage V / Tier 4F; Exhaust system complete stainless steel with SCR
catalyzer
Equipment superstructure
14.5 m – 80 m; Single cylinder telescoping system, automatic telescoping; Attachments for all equipment and extensions; 5 sheaves integrated in boom head for max. capacity of 113 t.
